Shenzhen avsuka Electronic Co., Ltd

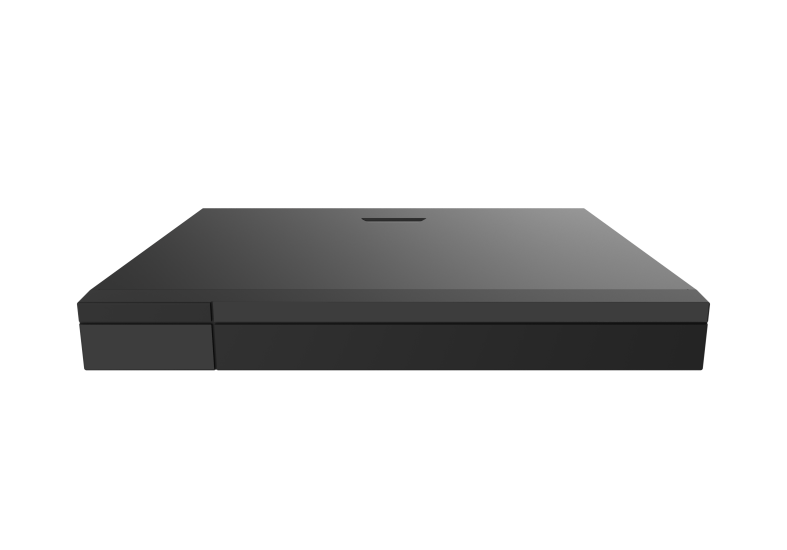

16CHs 5MP H.265/H.264 NVR

Features:

Support 16 CHs 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input

Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

Multi-mode recording: manual / timer / motion / sensor

Playback : 16CHs simultaneous playback

Search : time slice, time, event ( manual, sensor, motion ), tag search

Express and flexible backup via USB, network and so on

Pentaplex : preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol and CMS supported

Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device

Multi-user online simultaneously

Authorization management, log view and device status view

1080P HD output, true high resolution display

Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

Support NAT function and QRCode scanning by mobile phone and PAD

Powerful smart phone & Pad surveillance with iOS and Andriod OS

System	Compression	Standard H.265
System	OS	Embedded Linux
Video	Network Access Bandwidth	56Mbps
	Input Resolution	5MP、4MP、3MP、1080P、960P、720P real time
	Network Access	16 CH IPC input
	Output	HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768
Audio	Input	16 CH IPC audio input
	2-way Audio	No
	Local Output	No ( HDMI supports the audio output )
Record	Resolution	5MP、4MP、3MP、1080P、960P、720P
	Frame Rate	25fps/30fps(PAL/NTSC）
	Bite Stream	32Kbps-8Mbps
	Image Quality	5 Level
Playback	Simultaneous Playback	Max 16 CH
Network	Interface	RJ45 10/100Mbps × 1
Network	Network Protocol	TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage	HDD	SATA×1
Storage	Max Capacity for 1 single HDD	10T
Backup	USB Backup	Yes
Backup	eSata Backup	No
Interface	Alarm In	No
	Alarm Output	No
	Communication	No
	Remote	Optional
	USB	USB2.0×2 (rear panel )
Others	Case	1U
	Dimensions(mm )	260×240×44(W×D×H)
	Power Supply	DC12V
	Consumption	≤ 6W ( without HDD )
	Work Environment	-10 ～ 50 ℃，10% ～ 90% humidity
