Shenzhen avsuka Electronic Co., Ltd

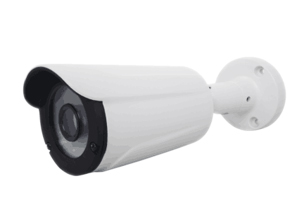

1/2.8" 2.1 Mega pixels Sony CMOS

4-in-1 HDCVI / HDTVI/AHD/CVBS optional output

Full HD resolution 1920 x 1080P with Sony CMOS sensor

OSD keys control mode switch and menu

OSD menu control over coaxial cable (UTC)

Over 300M long distance real time monitoring

Ultra low light and high dynamic range

Day/Night (ICR), AWB, AGC, BLC, DNR, D-WDR

IP66 water-proof housing

6 pcs Array IR Leds, IR distance 20-30 meters

3.6 mm fixed lens

Image Sensor	1/2.8" 2.1 Mega pixels Sony CMOS
Chipset	IMX307+NVP2441H
Effective Pixels	1945(H)×1097 (V)
Lowest illumination	0.001Lux@（F1.2,AGC ON）, 0 Lux with IR
Electronic Shutter	1/50s~1/60,000s
Video System	PAL/NTSC
Video Frame Rate	25/30fps@1920×1080P
Video Output	1 channel, HDCVI / HDTVI/AHD/CVBS optional
Video Switch	OSD keys
Smart IR Control	Support
Day/Night	Auto(ICR) / Color / B/W
WDR	D-WDR
OSD Menu	Support, coaxial cable control via DVR directly (UTC)
Other Function	AWB, AGC, BLC
General
Power Supply	DC12V±10%
Power Consumption	< 5W
Working Environment	-30°C~+60°C / Less than 95%RH
IR LEDs	6 pcs Array IR Leds
IR Distance	20-30 meters
Lens	3.6 mm fixed lens
Transmission Distance	Over 300m via 75-3 coaxial cable
