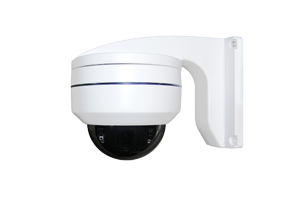

Products >> Dome PTZ Camera |
|
|
|
- Description
- Parameters
- Structure function
1/2.8" Sony low-light CMOS sensor
Max. 8MP resolution 3840 x 2160 output
low illumination 0.01Lux
8MP Starlight lens
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR, Mirror, rotate, Defogging
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and Onvif 17.06 compatible with many third-party NVR
H.264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
Lightning protection 4000V
Strong water-proof housing IP66
2 pcs Array IR Led, IR distance 10-20 meters
|
Image Sensor:
|
1/2.8" CMOS
|
|
|
|
|
|
|
Effective Pixels:
|
8.0MP pixels，3840*2160，H.265/H.264
|
|
Focal Length:
|
8MP Starlight 3.6mm lens
|
|
Min. Illumination:
|
Color: 0.05Lux@(F1.6, AGC ON), B/W: 0.01Lux@(F1.6, AGC ON)
|
|
0Lux with IR
|
|
White Balance:
|
Auto/Manual
|
|
AGC:
|
Auto/Manual
|
|
Focus Mode:
|
Auto/Manual/SemiAuto
|
|
Day & Night:
|
IR Cut Filter,Auto,Color,B/w
|
|
DNR
|
Low/Middle/High/Off
|
|
|
|
|
Back light Compensation:
|
ON/OFF
|
|
DWDR:
|
Support, on/off
|
|
|
|
|
Video format:
|
8MP@20FPS,6.0MP@30FPS
|
|
S/N Ratio:
|
≧50dB
|
|
Pan / Tilt Range:
|
Pan: 355° Continuous Rotation; Tilt: 0° ~ 90°
|
|
Rotationt Speed:
|
Rotation Speed: 0.5-70° /s
|
|
Proportional Zoom:
|
support
|
|
Number of Preset:
|
128
|
|
PTZ functionl:
|
1 patrols,1 left and right scan,1 auto level scan
|
|
Idle running functions
|
Yes
|
|
Power off memory function:
|
Yes
|
|
Net Interface
|
RJ45 Ethernet interface,Support 10M/100M
|
|
Image Compression:
|
H.265/H.264
|
|
Dual Rate
|
8MP+D1
|
|
Audio(optiona)
|
AAC/G.711 compression
|
|
Network Protocols:
|
IPv4, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS,DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
|
|
Client
|
Support
|
|
ONVIF
|
support Onvif Protocol
|
|
Business Function
|
Support WEB, real-time video transmission; and motion detection
|
|
IR Lamp
|
2High power array infrared LED
|
|
IR Distance
|
10-20M
|
|
Infrared LED on
|
Auto
|
|
Protocols:
|
Pelco-P, Pelco-D, self-adaptive
|
|
Working Temperature:
|
-20°C~60°C
|
|
Humidity:
|
≤90%, Non- condensing
|
|
Waterproof grade:
|
IP66
|
|
Package Dimension:
|
132x132x115mm
|
|
Weight (approx.):
|
650g
|
|
Mount Option:
|
Ceiling mount,Wall mount
|
|
Power:
|
DC12V/1A (±10%), ≤10W
|
|
Accessories:
|
Installation manual , accessories bag
|
|
