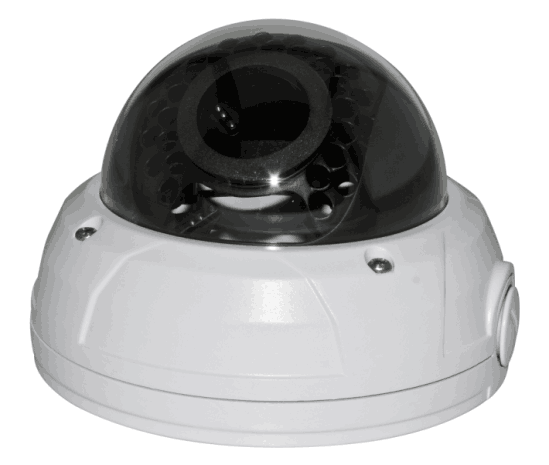

5MP H.264 & H.265 Motorized vandal-proof IR Dome IP Camera

Features:

1/2.8" Sony IMX335 Low light CMOS sensor

Low illumination 0.01Lux

Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT

D-WDR, Motion Detection, Privacy Mask, Mirror, Flip

RTSP and Onvif 17.06 compatible

H.265/H.264 dual-stream media server, Max.5MP HD output

Ultra low bitrate and high image quality

Easy-to-use P2P Cloud service

Multi web browser, PC Client, mobile APP remote access

Optional customization Lens/Audio/POE, etc.

Lightning protection 4000V

Strong Metal housing, IP65

18PCS Array IR LEDs, IR distance 20-25 meters

HD 2.7 – 13.5 mm AF Motorized Lens

Image Sensor	1/2.8" Sony IMX335 CMOS
Effective Pixels	2592(H)×1944 (V)
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto
Other	AGC,2/3 DNR,Motion Detection,privacy Mask,Mirror,Flip
Encode
Embedded Solution	Mstar MSC316DM
Video Standard	H.265/H.264
Video Resolution	MainStream:15fps@5MP(2592x1944),25fps@4MP/3MP,30fps@1080P/720P
Video Bitrates	512Kbps - 6Mbps, VBR/CBR
IR Led
IR Led	18 pcs new array IR Leds
IR Distance	20-25 M
Lens
Focal length	2.8 – 12 mm AF Motorizes lens
Focus	4X optical zoom
Optional Function
POE, Audio, etc.
Network Services
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	Yes
Web	IE , Firefox, etc.
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 5 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
